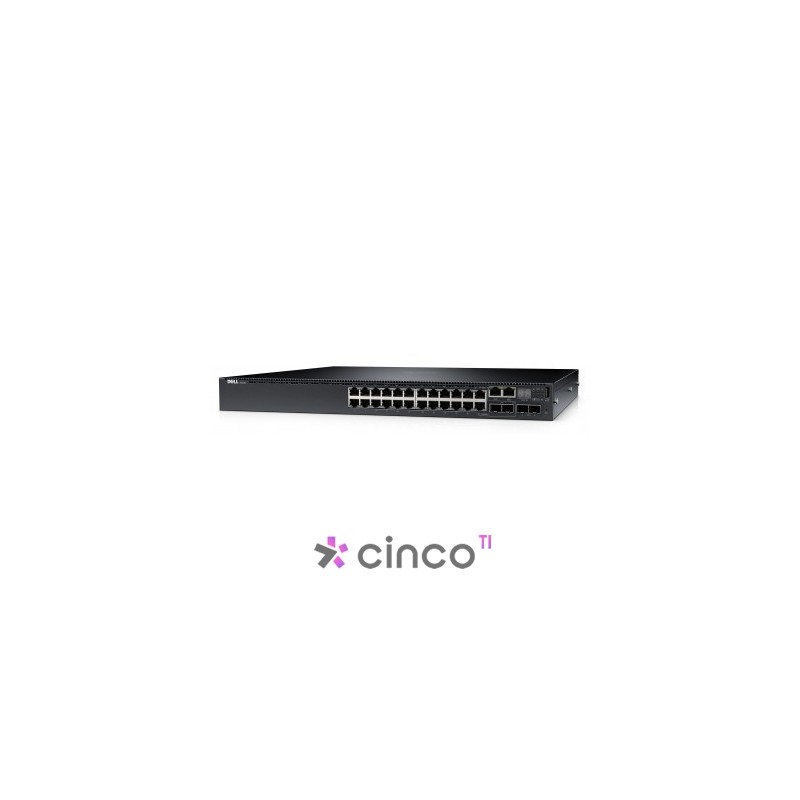

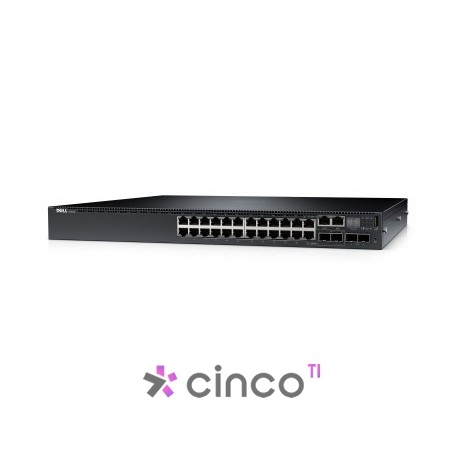

Sistema Comutador de Pacote de Dados (Switch) Dell EMC N3024ET-ON 210-APXD

Device Type
Switch - 24 ports - L2+ - Managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 2x SFP+ ports + 2x GbE combo media ports
Performance Switching fabric bandwidth: 212 Gbps | Forwarding performance: 158 Mpps
Capacity Virtual interfaces (VLANs): 4096 | ARP entries: 1024 | NDP entries: 400 | Priority queues per port: 8 | IPv4 routes (static): 256 | IPv6 routes (static): 128 | IPv4 routes (dynamic): 256 | VLAN routing interfaces: 256 | ACL: 100 | Max ACL rules system-wide: 2048 | Maximum rules per ACL: 1023 | Maximum ACL rules per interface (IPv4) ingress rules: 1024 | Maximum ACL rules per interface (IPv4) egress rules: 512 | Maximum ACL rules per interface (IPv6) ingress rules: 512 | Maximum ACL rules per interface (IPv6) egress rules: 256 | Maximum VLAN interfaces with ACLs applied: 24 | Maximum aggregation groups: 128 | Maximum dynamic ports per switch stack: 144 | Maximum member ports per LAG: 8
MAC Address Table Size 32K entries
Routing Protocol RIP-1, RIP-2, static IPv4 routing, static IPv6 routing
Remote Management Protocol Telnet, TFTP
Features Flow control, auto-negotiation, VLAN support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Access Control List (ACL) support, front to back airflow, IPv4 support, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Neighbor Discovery Protocol (NDP), redundant fans
Weight 3.69 kg
Dimensions (WxDxH) 44 cm x 25.7 cm x 4.35 cm>

 1 x Dell 210-APXD EMC Networking N3024ET-ON 24 Port L3 Managed Switch
 Power Supply
 User Guide
