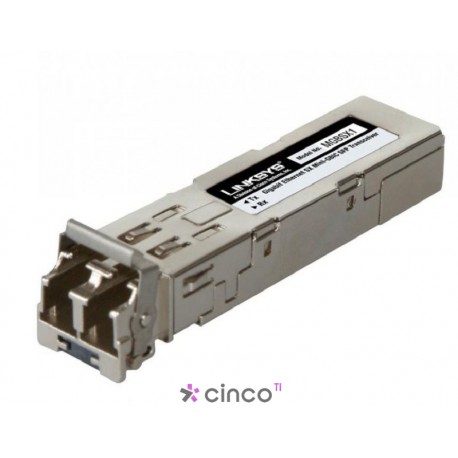

Gigabit 1000Base-SX Mini-GBIC SFP Transceiver MGBSX1

Product Name MGBSX1 Gigabit SX Mini-GBIC SFP Transceiver
Product Type SFP (mini-GBIC)
Interface Type 1000Base-SX
Number of Ports/Channels 1
Compatibility
SR2024 - 24-Port 10/100/1000 Gigabit Switch
SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC
SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView
SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView
SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView
Product Model MGBSX1
Data Transfer Rate 1 Gbps Gigabit Ethernet
Application/Usage Data Networking
Interfaces/Ports 1 x 1000Base-SX
Interfaces/Ports Details 1 x LC 1000Base-SX
Connectivity Media 62.5/125 µm Multi-mode Optical Fiber
50/125 µm Multi-mode Optical Fiber
Humidity 0% to 85% Non-condensing Operating
5% to 95% Non-condensing Storage
Distance Supported 721.78 ft 62.5/125 µm Optical Fiber
902.23 ft 62.5/125 µm Optical Fiber
1640.42 ft 50/125 µm Optical Fiber
1804.46 ft 50/125 µm Optical Fiber
Temperature 32°F (0°C) to 104°F (40°C) Operating
-4°F (-20°C) to 158°F (70°C) Storage

Additional Information
Transmitter Spec: Power: -9.5 to -4 dBm
Reciever Spec: Sensitivity: -20 to -17dBm
Input Power: -20 to -17 dBm
Stress Sensitivity: 50/125 um: -13.5dBm, 62.5/125 um: -12.5dBm
Wavelength: 850 nm (850nm TYP., 830-860nm) MMF
Modular Bandwidth for MMF:
62.5/125um MMF at 160 MHz/km, up to 220m
62.5/125um MMF at 200 MHz/km, up to 275m
50/125um MMF at 400 MHz/km, up to 500m
50/125um MMF at 500 MHz/km, up to 550m
