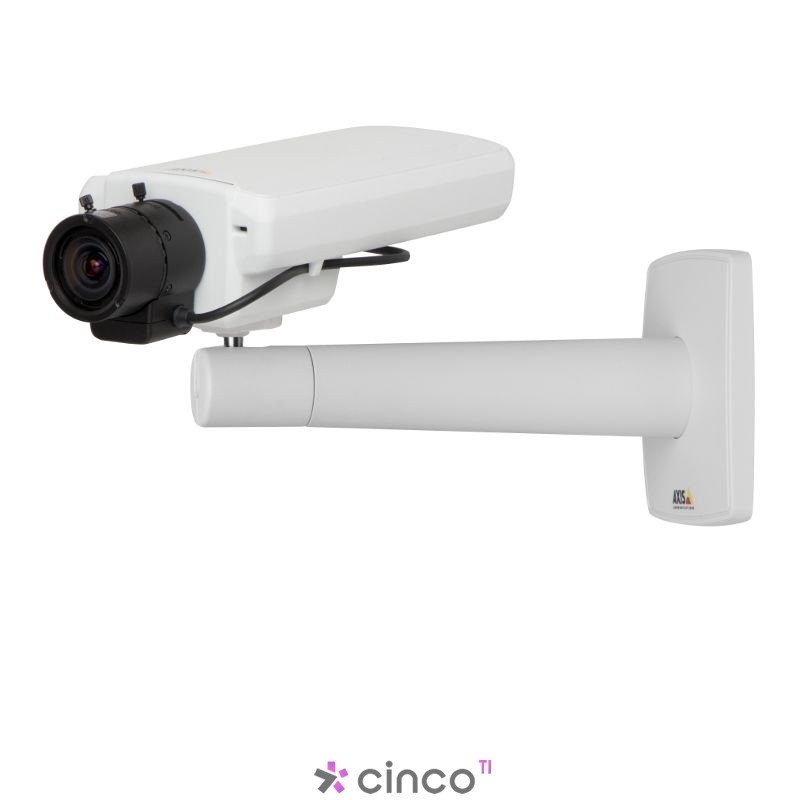

Axis Communications P1353 Day/Night Indoor Network Camera 0523-001

Lens Varifocal 3 to 8 mm: 82 to 34° horizontal FOV, F1.0
Day/Night Automatically removable infrared-cut filter
Shutter Time Power Line Frequency 50 Hz: 1/24500 to 2 seconds
Power Line Frequency 60 Hz: 1/29500 s to 2 seconds
Video
Video Compression H.264 (MPEG-4 Part 10 / AVC)
H.264 baseline and main profile
Motion JPEG
Frame Rate H.264/ Motion JPEG: 30 fps in 60 Hz power line frequency
25 fps in 50 Hz power line frequency
Video Streaming Multiple, individually configurable streams in H.264 and motion JPEG controllable frame rate and bandwidth VBR / CBR H.264
Image Settings Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behavior at low light, dynamic contrast
Text and image overlay, privacy mask, & mirroring of images
Rotation: 0°, 90°, 180°, & 270° including corridor format
Audio
Audio Streaming Two-way, full duplex
Audio Compression AAC LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz
Configurable bit rate
Audio Input/Output External microphone input or line input, line output
Built-in microphone (can be disabled)
Network
Security Password protection, IP addresses filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, & user access log
Supported Protocols IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS Note: This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.
System Integration
Application Programming Interface Open API for software integration, including the ONVIF, as well as VAPIX and camera application platform
Support for video hosting system (AVHS) with one-click camera connection
Support for camera companion
Intelligent Video Video motion detection, active tampering alarm, audio detection Support for camera application platform enabling installation of additional applications
Event Triggers: Intelligent video, external input, audio level, time scheduled, & edge storage events
Event Actions: File upload: FTP, HTTP, network share and email, notification: email, HTTP and TCP, external output activation, pre- and post-alarm video buffering, video and audio recording to edge storage, PTZ preset, guard tour, play audio clip, day & night switching, & status LED activation
Data Streaming Event data
Installation Aids: Focus assistant, remote back focus, & pixel counter
General
Casing Metal (zinc)
Memory 256 MB RAM, 128 MB Flash, & battery backed-up real-time clock
Power 8 to 28 VDC or PoE (Power over Ethernet) IEEE 802.3af maximum 7.2 W, PoE Class-3
Connectors RJ-45 10BASE-T / 100BASE-TX PoE IO (Limited): 4-pin 0.09" (2.5 mm) terminal block, for 1 alarm input and 1 output RS-485/422, 2 pcs, 2 pos, full duplex, terminal block, terminal block DC input, 3.5 mm microphone line in, 3.5 mm line out, & DC-iris connector
Edge Storage microSD / microSDHC / micro / SDXC slot supporting memory card up to 64 GB (card sold separately).
Support for recording to network share (network-attached storage or file server).
Operating Conditions 32 to 122°F (0 to 50°C), humidity 10 to 85% RH (non-condensing)
Approvals EN 55022 Class B, EN 55024, EN/IEC/UL 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22, KN22 Class B, & KN24
Dimensions 1.8 x 3.1 x 7.6" (46 x 78 x 192 mm)
Weight 1.3 lb (0.6 kg)
